MAICO


For more than seven decades MAICO has been an innovator  in audiological instruments, developing, producing and distributing reliable products ranging from hearing screening to diagnostic solutions. MAICO has grown over the years to fulfill the specialized needs of the growing field of audiology. From screening audiometers for school nurses and GPs to complex diagnostic instruments for in-depth examination, MAICO provides novel and efficient tools for hearing professionals.The future of MAICO is to continue our commitment to providing state-of-the-art technology; fast, reliable service; usability and customer support.

AUDIOMETERS

Diagnostic Audiometers

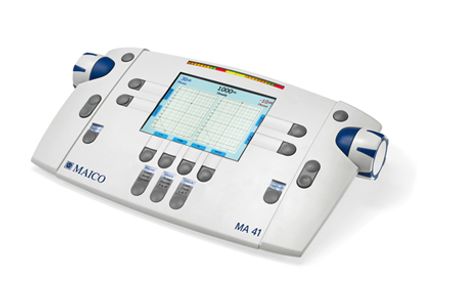

MA41


  • Tone and speech audiometer for AC, BC (phone and inserts) and free-field testing
  • Sinus tone, warble tone, narrow band and speech noise
  • Speech tests from SD memory card, CD or via microphone
  • Individual customization by extensive configuration options
  • Direct printout of the results via optional external printer
  • USB PC interface
  • Optional patient database or NOAH compatible software
  • Internal patient database for more than 1000 test results

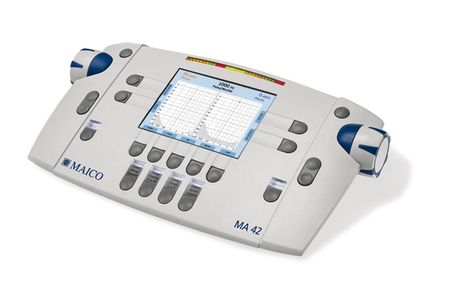

MA42


  • Air conduction, bone conduction, free field and speech audiometric testing
  • Pure tone, warble tone, narrow band, white and speech noise
  • Diagnostic Tests such as SISI, Decay, ABLB, MLB, Langenbeck, Stenger
  • Independent two channel
  • High frequency option up to 16 kHz
  • USB PC-Interface, NOAH compatible
  • Patient database for more than 1000 test results



MIDDLE EAR ANALYZERS

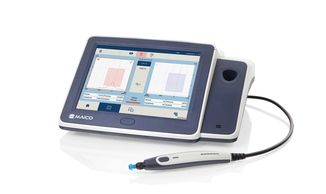

TouchTymp MI 34


  • Get test results within seconds
  • Eligible for testing infants to adults
  • With 10"4 full-touchpad interface for easy handling
  • Intuitive and customizable interface
  • Innovative probe lights for real-time progression of the test
  • Probe tone 226 Hz, 678 Hz, 800 Hz included
  • ETF and Reflex Decay test for perforated and intact eardrums
  • Built-in printer





touchTymp MI 24


  • Provides test results within seconds
  • Allows testing from infants to adults
  • Customizable to suit individual needs
  • Full 10.4'' touch-based interface for an intuitive handling
  • Innovative probe lights allow patient-focused operation
  • Probe tone 226 Hz, optional high frequency probe tone 1 kHz
  • Acoustic reflex frequencies 500 Hz, 1 kHz, 2 kHz, 4 kHz (ipsi- and optional contralateral)
  • High resolution and quick screen transitions
  • Built-in printer

easyTymp™


  • Very fast and reliable impedance measurement
  • Probe tone 226 Hz, optional high frequency probe tone 1 kHz
  • Reflex frequencies 0.5, 1, 2 and 4 kHz
  • Automatic tests – simple to use
  • Full color, high resolution display
  • Stores more than 1000 measurements
  • Desktop station with integrated eartip box or integrated printer







easyTymp™ Plus Version


  • Very fast and reliable impedance measurements
  • Probe tone 226 Hz, optional high frequency probe tone 1 kHz
  • Reflex frequencies 500 Hz, 1 kHz, 2 kHz, 4 kHz (ipsi- and contralateral)
  • Automatic tests – simple to use
  • Full color, high resolution display
  • Stores more than 1000 measurements








easyTymp™ Pro Version


  • Very fast and reliable impedance measurements
  • Probe tone 226 Hz, optional high frequency probe tone 1 kHz
  • Reflex frequencies 500 Hz, 1 kHz, 2 kHz, 4 kHz (ipsi- and contralateral)
  • Reflex decay testing (ipsi- and contralateral)
  • Eustachian tube function (ETF) test for intact and perforated eardrums
  • Automatic tests – simple to use
  • Full color, high resolution display
  • Stores more than 1000 measurements



OAE

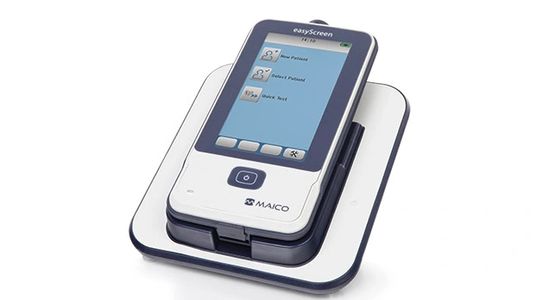

easyScreen


  •  Fast and easy ABR + OAE hearing screening
  • Powerful ABR detection algorithm for testing within seconds
  • Truly intuitive user interface
  • On-screen guidance; i.e. probe fitting feedback, noise monitoring
  • Small and lightweight
  • Large color touchscreen for comfortable navigation
  • Very short boot-up time and long battery life
  • Cradle for wireless charging
  • HearSIM™ patient database and device manager

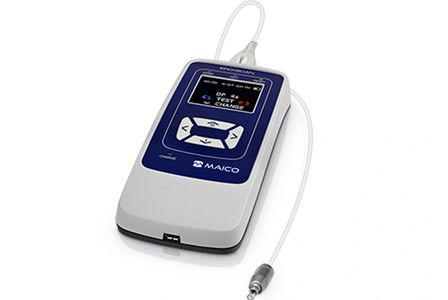

ERO•SCAN


  • Performing screening and diagnostic testing with TE and / or DPOAE
  • Fast automatic test with Pass / Refer and graphical test result
  • Sharp, colored organic LED Display
  • Direct evaluation via value and bar diagram
  • Up to 12 frequencies displayed within the device, DPOAE up to 12 kHz
  • High noise immunity for operation in normal clinical environment
  • Lightweight, small earprobe
  • Environmentally friendly due to long life, rechargeable battery
  • Bluetooth® communication to optional printer and PC
  • Evaluation of results in PC
  • Multiple, easily selected language options



ABR

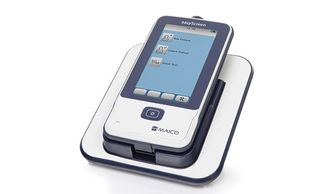

easyScreen


  • Fast and easy ABR + OAE hearing screening
  • Powerful ABR detection algorithm for testing within seconds
  • Truly intuitive user interface
  • On-screen guidance; i.e. probe fitting feedback, noise monitoring
  • Small and lightweight
  • Large color touchscreen for comfortable navigation
  • Very short boot-up time and long battery life
  • Cradle for wireless charging
  • HearSIM™ patient database and device manager

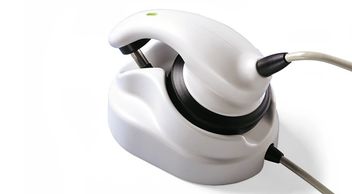

MB11 BERAphone


  • Fast and automatic ABR-screening, reliable results within seconds
  • Unique BERAphone® with integrated electrodes saving costs for disposables
  • CE-Chirp™ stimulus evoking a higher ABR than a Click stimulus (Elberling et. al. 2007)
  • Automatic impedance check of the electrode skin contact
  • Tracking data export functionality
  • Stimulation level of 35 dBnHL
  • USB-connection for power supply and data transfer

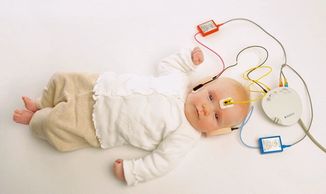

MB11 Classic


  • Fast and automatic ABR-screening, reliable results within seconds
  • Simultaneous binaural hearing screening for all ages
  • CE-Chirp™ stimulus evoking a higher ABR than a Click stimulus (Elberling et. al. 2007)
  • Advanced ABR detection algorithm provides “PASS” or “REFER” result
  • Automatic impedance check ensuring precise and clear signal conditions
  • Automatic data export for easy tracking
  • Using Sanibel Infant EarCups™ and snap electrodes
